Bre-B QR

Enables the payer to scan a QR code using the home banking app to complete the transaction. The QR code is returned in the purchase response as a base64 image.

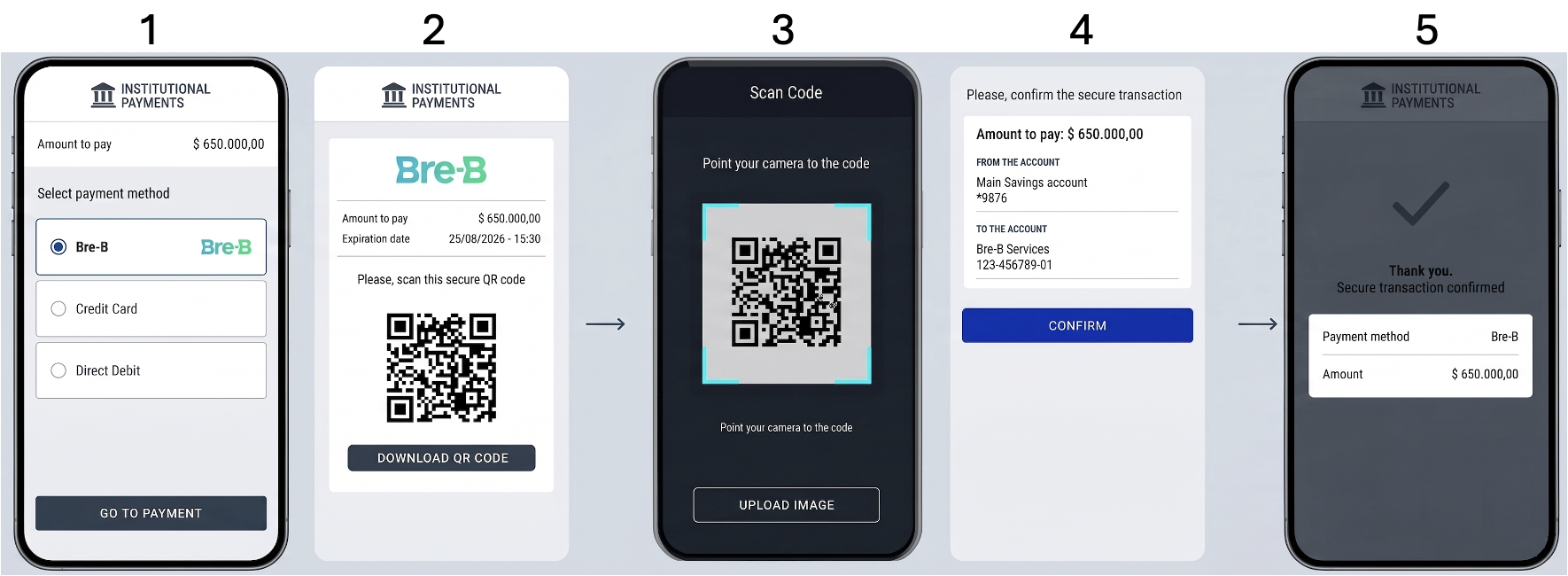

Payment flow

The customer reaches the checkout page and selects Bre-B QR as the preferred payment option.
A Bre-B payment voucher is generated and displayed. The customer can scan the QR code or download it as an image.
On their banking application, the customer scan the QR code or upload the saved image.
The banking app shows the payment information so the customer can review and authorize the transaction.
Once the payment is approved, the merchant’s website receives the confirmation and completes the purchase flow.

Request parameters

The following parameters are required specifically for this payment method.
Refer to the Create a Purchase guide for authentication and global fields such as Amount, Currency, and Order.

Property	Type	Mandatory	Description
`PaymentMethod`	`string`	Yes	Must be `BBQ`. Refer to the Payment Methods table.
`TargetCountryISO`	`string`	Yes	Country code. Must be CO.
`Customer` → `Email`	`string`	Yes	Customer’s email address.
`Customer` → `FirstName`	`string`	No	Customer’s first name. Recommended.
`Customer` → `LastName`	`string`	No	Customer’s last name. Recommended.
`Customer` → `DocumentType`	`string`	Yes	Use a valid value from the Document types table
`Customer` → `DocumentNumber`	`string`	Yes	Customer’s Identification number. Document Types – Colombia.
`Customer` → `PhoneNumber`	`string`	No	Customer phone number. Recommended.
`MetaDataIn` → `PaymentExpirationInMinutes`	`numeric`	No	Defines the expiration time for the payment in minutes

Request example

To test this endpoint, use the API Reference or the Postman Collection

{
    "PaymentMethod": "BBQ",
    "Order": "CH2023-001",
    "TargetCountryISO": "CO",
    "Amount": 100100,
    "Currency": "COP",
    "Description":"Purchase Test",
    "Customer": {
        "Email": "[email protected]",
        "FirstName" : "John",
        "LastName": "Doe",
        "DocumentNumber" : "13394559358",
        "DocumentType": "NIT.CO",
        "PhoneNumber": "+573998764643"
    }
}

ℹ️
If FirstName LastName DocumentType and DocumentNumber are not included in the purchase request, they must be provided in the refund request.

Response parameters

The API response returns the payment voucher information (QR code and payment key) required for the customer to complete the payment. The transaction is initially created with PENDING status. The final payment result is notified asynchronously through webhook notifications (see Webhook Notifications) .
For more details on the full response object, refer to the Response parameters section of the Purchase creation guide.

Property	Type	Description
`MetadataOut` → `Base64QR`	`string`	Image of the QR code in Base64, for display on the checkout.
`MetadataOut` → `PaymentCouponUrl`	`string`	Payment coupon URL (Voucher).
`MetadataOut` → `PaymentExpirationDate`	`string`	Payment expiry date and time, format dd/MM/yyyy HH:mm (Only applies for Local currency)

Response example

{
    "TransactionId": "313343841237314912",
    "Result": "COMPLETED",
    "Status": "PENDING",
    "ErrorCode": null,
    "ErrorDescription": null,
    "Created": "2026-05-14T15:56:33.463",
    "AuthorizationDate": "2026-05-14T15:56:45.489",
    "AuthorizationCode": null,
    "Amount": 100100,
    "Currency": "COP",
    "Installments": 1,
    "TaxableAmount": null,
    "Tip": null,
    "Url": "https://api.stage.bamboopayment.com/v3/api/transaction/313343841237314912",
    "MetadataOut": {
        "Base64Qr": "iVBORw0KGgoAAAANSUhEUgAAAAEAAAABCAYAAAAfFcSJAAAADUlEQVR42mNk+M9QDwADhgGAWjR9awAAAABJRU5ErkJggg==",
        "PaymentCouponUrl": "https://voucher.stage.bamboopayment.com/vouchers/breb/voucher_313343841237314912_20260514155643.html",
        "PaymentExpirationDate": "14/05/2026 23:59"
    },
    "Action": null,
    "PaymentMethod": {
        "Brand": "Bre-B",
        "CardOwner": null,
        "Bin": null,
        "IssuerBank": null,
        "Type": "BankTransfer",
        "Expiration": null,
        "Last4": null
    }
}

Bre-B Dynamic Key

Enables the payer to complete the transaction using a unique Bre-B dynamic key generated for each transaction and returned in the payment response.

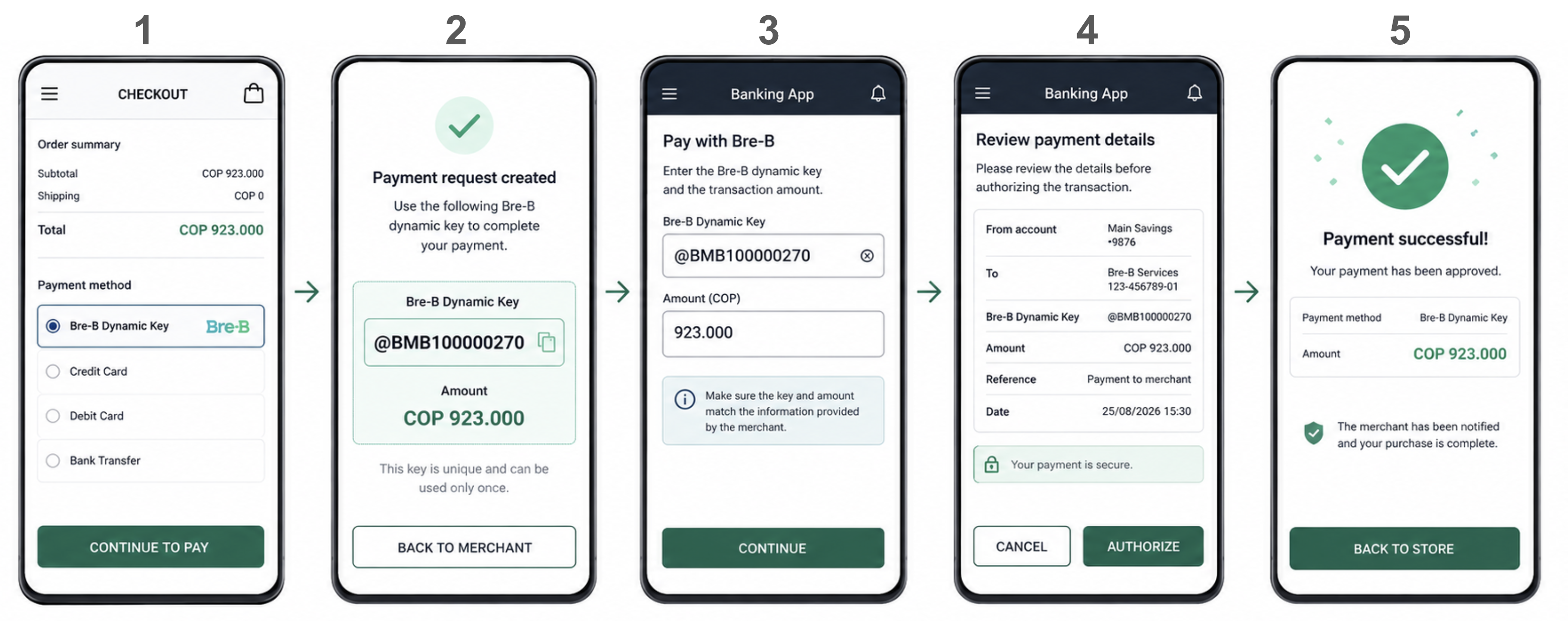

Payment flow

The customer reaches the checkout page and selects Bre-B dynamic key as the preferred payment option.
A unique Bre-B dynamic key is generated for the transaction and returned in the payment response.
Using their banking application, the customer enters the Bre-B dynamic key together with the transaction amount.
The banking application displays the payment details so the customer can review and authorize the transaction.
Once the payment is approved, the merchant’s website receives the confirmation and completes the purchase flow.

Request parameters

The following parameters are required specifically for this payment method.
Refer to the Create a Purchase guide for authentication and global fields such as Amount, Currency, and Order.

Property	Type	Mandatory	Description
`PaymentMethod`	`string`	Yes	Must be `BBK`. Refer to the Payment Methods table.
`TargetCountryISO`	`string`	Yes	Country code. Must be CO.
`Customer` → `Email`	`string`	Yes	Customer’s email address.
`Customer` → `FirstName`	`string`	No	Customer’s first name. Recommended.
`Customer` → `LastName`	`string`	No	Customer’s last name. Recommended.
`Customer` → `DocumentType`	`string`	Yes	Use a valid value from the Document types table
`Customer` → `DocumentNumber`	`string`	Yes	Customer’s Identification number. Document Types – Colombia.
`Customer` → `PhoneNumber`	`string`	No	Customer phone number. Recommended.
`MetaDataIn` → `PaymentExpirationInMinutes`	`numeric`	No	Defines the expiration time for the payment in minutes (max. 10 minutes for Bre-B Dynamic Key flow)

ℹ️
If FirstName LastName DocumentType and DocumentNumber are not included in the purchase request, they must be provided in the refund request.

Request example

To test this endpoint, use the API Reference or the Postman Collection

{
    "PaymentMethod": "BBK",
    "Order": "CH2023-001",
    "TargetCountryISO": "CO",
    "Amount": 923000,
    "Currency": "COP",
    "Description":"Purchase Test",
    "Customer": {
        "Email": "[email protected]",
        "FirstName" : "John",
        "LastName": "Doe",
        "DocumentNumber" : "13394559358",
        "DocumentType": "NIT.CO",
        "PhoneNumber": "+573998764643"
    }
}

Response parameters

The following example shows the response to the request. For additional information about the response structure, refer to the Response parameters section of the Purchase creation guide.

The purchase is created with status PENDING. The unique Bre-B dynamic key for the transaction is returned in theMetadataOut.AliasKey field.

Property	Type	Description
`MetadataOut` → `AliasKey`	`string`	Unique dynamic key associated with the payment.
`MetadataOut` → `PaymentCouponUrl`	`string`	Payment coupon URL (Voucher).
`MetadataOut` → `PaymentExpirationDate`	`string`	Date and time when the Bre-B dynamic key expires. Format: `DD/MM/YYYY HH:mm:ss`.

Response example

{
    "TransactionId": "313343841237314912",
    "Result": "COMPLETED",
    "Status": "PENDING",
    "ErrorCode": null,
    "ErrorDescription": null,
    "Created": "2026-05-14T15:56:33.463",
    "AuthorizationDate": "2026-05-14T15:56:45.489",
    "AuthorizationCode": null,
    "Amount": 923000,
    "Currency": "COP",
    "Installments": 1,
    "TaxableAmount": null,
    "Tip": null,
    "Url": "https://api.stage.bamboopayment.com/v3/api/transaction/313343841237314912",
    "MetadataOut": {
        "AliasKey": "@BMB100000270",
        "PaymentCouponUrl": "https://voucher-ui.stage.bamboopayment.com/voucher/322803562482610624",
        "PaymentExpirationDate": "09/06/2026 13:36"
    },
    "Action": null,
    "PaymentMethod": {
        "Brand": "Bre-B Keys",
        "CardOwner": null,
        "Bin": null,
        "IssuerBank": null,
        "Type": "BankTransfer",
        "Expiration": null,
        "Last4": null
    }
}
